EV Chargers

EV Chargers

An EV charger, or Electric Vehicle Supply Equipment (EVSE), supplies electricity to recharge plug-in electric vehicles, working much like a phone charger but on a larger scale, converting grid AC power to DC power for the vehicle's battery, with key types being slower AC Charging (Levels 1 & 2) using the car's internal converter.

And faster DC Fast Charging (Level 3) where the station handles the AC-to-DC conversion for rapid power delivery directly to the battery, essential for supporting the EV industry and reducing range anxiety.

KEY FEATURES:

  • Versatile Design
  • Future-Ready
  • Durable Product
  • Enhanced Utilization

Technical Specifications

Electrical Specification

  • Input / output AC voltage
    (Single phase 3 wire with
    Protective Earth (PE))
  • AC 240V(-30%+20%)
    [168V to 288V
  • Input / Output current (AC)
  • 16 Amps
  • Power (Input and Output)
  • 3.3 KW
  • Car charging current
  • 12 to 16 Amps
  • Control Pilot PWM duty cycle
  • 25%
  • Proximity Pilot (resistance between
    PE and PP is 220 ohms)
  • Within EVSE connector
  • Control Pilot voltage level
    (as per standard IEC IEC61851-1)
  • +/- 12V
  • Control Pilot voltage levels after connection
    (as per standard (as per IEC61851-1))
  • +12V, +9V, +6V
  • EVSE connector outlet (@ 20 A)
  • IEC 62196 Type 2
  • Over Current load protection
  • At 16.5 Amps
  • EVSE outlet cable IEC
    62196 Type 2 20 Amp
  • TTEV20A-IP5T2
  • Input power plug (fire retardant)
  • 15 Amp, 3 pin
  • Enclosure protection class
  • IP 65
  • Operating temperature
  • -10°C to +55°C
  • Storage temperature
  • -40°C to 60°C
  • Humidity (non-condensing)
  • 85%
  • Visual Indications 4 bright LEDs
  • Power On – Blue
    Car connected – Orange
    Charging – Green
    Fault – Red
  • Over current protection fault
  • Slow blinking Red
  • PE(Protection Earth fault -
    residual current)
  • Fast blinking Red
  • Mounting
  • Hand held portable
  • Dimension in mm (Box) approx
  • 260(L) x 80(W)x 45H
  • Weight including cable (approx)
  • 3.5 Kg

A.Electrical Specification

  • Mode of Charger
  • Mode 2 (As per IEC
    62752 & IEC 61851)
  • Level of Charging Voltage
  • Level 2: 240V
  • Type of Output Connector
  • 7 Pin AC Charging Port-Type
    2 (IEC 62196) for AC
  • Energy Transfer Mode
  • Conductive
  • Input AC Supply
  • 1 Phase, 3 wire
    system (1L(Ph)+N+PE)
  • Input Voltage Range
  • 130-280 VAC
  • Input Frequency
  • 50Hz ±5%
  • Input Connector
  • Type 3 Pin Industrial
    Socket (1L(Ph)+N+PE) as per IEC 60309-1
  • Output Nominal Voltage
  • 230V AC
  • Maximum Output Current
  • 32A AC
  • Communication between
    EVSE and EV
  • As per IEC 61851-1
  • Output protection
  • Over Current, Short Circuit,
    Over Voltage, Under Voltage,
    Ground fault, Surge protection,
    Over Temperature, Earth Leakage protection,
    Residual Current Detection

B. Mechanical Specifications - Type 2 Plug

  • Max preferred dimension
  • As per IEC-62196-2
  • Mating cycles
  • > 10000 Cycles
  • Insertion force
  • As per IEC-62196-2
  • Withdrawal force
  • As per IEC-62196-2

C. Environmental Conditions

  • Ambient temperature
  • (-25°C) to 55°C
  • Storage temperature
  • (-40°C) to 85°C
  • Altitude
  • 3000m (normal) and
    5400m (specific regions)
  • Humidity
  • 85% RH
  • Ingress Protection
  • IP65 for IC-CPD, IP55 for Type 2
    plug unmated condition with dust cap &
    IP54 Type 2 plug mated condition
  • Cooling Mode
  • Natural Cooling

D. Cable Specifications

  • Phase (L1)
  • 6
  • Neutral (N)
  • 6
  • Protective Earth (PE)
  • 6

E. User Interface

  • EVSE Type
  • Portable
  • Cable length
  • 5000 mm
  • Visual Indicators (Status LED)
  • Presence of input supply indication,
    Error Indication, Charging indication

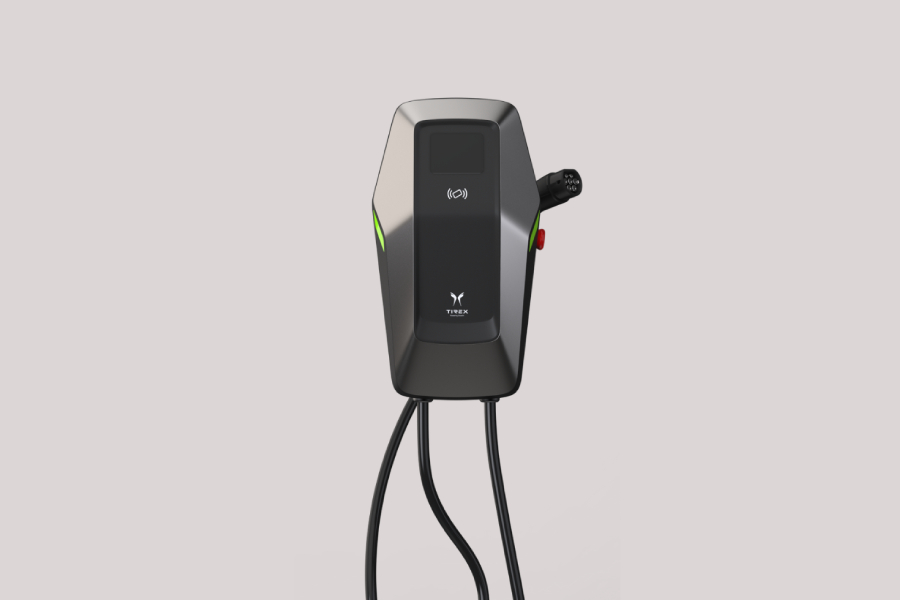

Electrical Specification

  • Rated Voltage
  • 230 VAC
  • Power Input
  • 180 to 280VAC (1P+N+E)
  • Max Power
  • 7.4kW
  • Rated Current
  • Max 32A
  • Input Frequency
  • 50Hz
  • Control Pilot PWM Duty Cycle
  • 53.33%
  • Over Voltage Trip
  • 280VAC
  • Over Current Trip
  • 34A
  • Residual current Detect
  • 30mAAC & 6mADC

Proximity Pilot

  • (Resistance Between PE
    and PP is 220 ohms)
  • Within EVSE Connector

Control Pilot Voltage Level

  • (As per Standard
    IEC 61851-1)
  • (+/-12V)

Control Pilot Voltage Level after connection

  • (As per Standard
    IEC 61851-1)
  • +12V, +9V, +6V

Mechanical Specifications

  • Dimensions
  • 424(L)x222(W)X121(D)(in mm)
  • Weight
  • 2.5 Kg
  • EVSE Connector Outlet
  • IEC 62196 Type 2
  • Enclosure Protection Class
  • IP65

Environmental Condition

  • Operating temperature
  • (-25°C) to +55°C
  • Storage temperature
  • (-40°C) to +85°C
  • Humidity
  • Up to 95%, non-condensing
  • Altitude
  • Max. 2000 m above sea level

Control Pilot Voltage Level after connection

  • Visual Indications
    4 Bright LEDs
  • Power ON - Blue
  • Car Connected - Orange
  • Charging Green
  • Fault - Red

Electrical

  • Maximum Output Power
  • 30kW
  • Input Supply
  • 3 Phase 5 wire AC Supply
  • Input Supply Rating
  • 3 Phase 380-480 V
  • Nominal Input Power (Approx.)
  • 32 kVA
  • Input Frequency
  • 50/60 Hz
  • Output Voltage Per Gun
  • 150 - 1000 Vdc
    (150-500 and 300-1000 seamless rise)
  • Output Max Current Per Gun
  • 100A
  • Metering
  • Grid Responsive Metering
  • Efficiency
  • >95% at Full Load condition
  • Power Factor
  • >0.98 at Nominal Load
  • Maximum Power Density
  • 0.363 W/cm³
  • Number of Power Modules
  • 1
  • Individual Capacity of Power Modules
  • 30kW
  • Short Circuit Current Rating
  • 10kA
  • Safety Systems
  • Under Voltage, Over Voltage,
    Over Current, Single Phasing, Earth Leakage,
    Over Temperature, Surge Protection

Interface

  • Gun Configurations
  • Single CCS2
  • Charging Cable Length
  • 5M
  • CMS Protocol
  • OCPP 1.6J Upgradable to OCPP 2.0
  • User Interface
  • 10.4 Inch full colored touch screen
  • Network Connection
  • 3G/4G Sim Card, Ethernet
  • RFID
  • MIFARE ISO 14443 Type A

Environmental

  • Cooling of Cabinet
  • Forced Air Cooled
  • Cooling of Power Modules
  • Forced Air Cooled
  • Humidity (Non Condensing)
  • 5%-95%
  • Max Operating Altitud
  • 2000 M
  • Operating Temperature Range
  • Negative 20 to Degree Celsius
    to 70 Degree Celsius (Derating beyond
    55 Degree Celsius)
  • Storage Temperature Range
  • Negative 40 Degree Celsius to
    70 Degree Celsius

Mechanical

  • IP Rating
  • IP 55
  • IK Rating
  • IK 10
  • Dimensions
    (Foot Print in W x D x H in mm)
  • NA
  • Dimensions
    (Maximum Points in W x D x H in mm)
  • 459 x 245 x 734
  • Mounting
  • Wall or Stand

Standards Compliance

  • Electrical Safety
  • IEC 61851-1
  • Electromagnetic Compatibility
  • IEC 61851-21-2
    IEC 61000-4
  • Other
  • AIS 138 Part 2
  • EV Communication
  • ISO 15118 - CCS2

Electrical

  • Maximum Output Power
  • 60kW
  • Input Supply
  • 3 Phase 5 wire AC Supply
  • Input Supply Rating
  • 3 Phase 380-480 V
  • Nominal Input Power (Approx.)
  • 64 kVA
  • Input Frequency
  • 50/60 Hz
  • Output Voltage Per Gun
  • 150 - 1000 Vdc
    (150-500 and 300-1000 seamless rise)
  • Output Max Current Per Gun
  • 150A
  • Metering
  • Grid Responsive Metering
  • Efficiency
  • >95% at Full Load condition
  • Power Factor
  • >0.98 at Nominal Load
  • Maximum Power Density
  • 0.065 W/cm³
  • Number of Power Modules
  • 2
  • Individual Capacity of Power Modules
  • 30kW
  • Short Circuit Current Rating
  • 10kA
  • Safety Systems
  • Under Voltage, Over Voltage,
    Over Current, Single Phasing, Earth Leakage,
    Over Temperature, Surge Protection

Interface

  • Gun Configurations
  • Dual CCS2 or Dual GBT
  • Charging Cable Length
  • 5M
  • CMS Protocol
  • OCPP 1.6J Upgradable to OCPP 2.0
  • User Interface
  • 10.4 Inch full colored touch screen
  • Network Connection
  • 3G/4G Sim Card, Ethernet
  • RFID
  • MIFARE ISO 14443 Type A

MIFARE ISO 14443 Type A

  • Cooling of Cabinet
  • Forced Air Cooled
  • Cooling of Power Modules
  • Forced Air Cooled
  • Humidity (Non Condensing)
  • 5%-95%
  • Max Operating Altitud
  • 2000 M
  • Operating Temperature Range
  • Negative 20 to Degree Celsius
    to 70 Degree Celsius (Derating beyond
    55 Degree Celsius)
  • Storage Temperature Range
  • Negative 40 Degree Celsius to
    70 Degree Celsius

Mechanical

  • IP Rating
  • IP 55
  • IK Rating
  • IK 10
  • Dimensions
    (Foot Print in W x D x H in mm)
  • 441 x 631 x 1550
  • Dimensions
    (Maximum Points in W x D x H in mm)
  • 791 x 746 x 1550
  • Mounting
  • Ground

Standards Compliance

  • Electrical Safety
  • IEC 61851-1
  • Electromagnetic Compatibility
  • IEC 61851-21-2
    IEC 61000-4
  • Other
  • AIS 138 Part 2
  • EV Communication
  • ISO 15118 - CCS2 Only
    DIN 70121 - CCS2 Only
    GBT Standard - GBT Only

Electrical

  • Maximum Output Power
  • 120kW
  • Input Supply
  • 3 Phase 5 wire AC Supply
  • Input Supply Rating
  • 3 Phase 380-480 V
  • Nominal Input Power (Approx.)
  • 128 kVA
  • Input Frequency
  • 50/60 Hz
  • Output Voltage Per Gun
  • 150 - 1000 Vdc
    (150-500 and 300-1000 seamless rise)
  • Output Max Current Per Gun
  • 200A
  • Metering
  • Grid Responsive Metering
  • Efficiency
  • >95% Peak
  • Power Factor
  • >0.98 at Nominal Load
  • Maximum Power Density
  • 0.154 W/cm³
  • Number of Power Modules
  • 4
  • Individual Capacity of Power Modules
  • 30kW
  • Short Circuit Current Rating
  • 10kA
  • Safety Systems
  • Under Voltage, Over Voltage,
    Over Current, Single Phasing, Earth Leakage,
    Over Temperature, Surge Protection

Interface

  • Gun Configurations
  • Dual CCS2 or Dual GBT
  • Charging Cable Length
  • 5M Standard (8M Optional)
  • CMS Protocole
  • OCPP 1.6J Upgradable to OCPP 2.0
  • User Interface
  • 10.4 Inch full colored touch screen
  • Network Connection
  • 3G/4G Sim Card, Ethernet
  • RFID
  • MIFARE ISO 14443 Type A

MIFARE ISO 14443 Type A

  • Cooling of Cabinet
  • Forced Air Cooled
  • Cooling of Power Modules
  • Forced Air Cooled
  • Humidity (Non Condensing)
  • 5%-95%
  • Max Operating Altitud
  • 2000 M (derating above 2000M)
  • Operating Temperature Range
  • Negative 20 to Degree Celsius
    to 70 Degree Celsius (Derating beyond
    55 Degree Celsius)
  • Storage Temperature Range
  • Negative 40 Degree Celsius to
    70 Degree Celsius

Mechanical

  • IP Rating
  • IP 55
  • IK Rating
  • IK 10
  • Dimensions
    (Foot Print in W x D x H in mm)
  • 750 x 760 x 1754
  • Dimensions
    (Maximum Points in W x D x H in mm)
  • 1100 x 810 x 1754
  • Mounting
  • Ground

Standards Compliance

  • Electrical Safety
  • IEC 61851-1

    IEC 61851-23
  • Electromagnetic Compatibility
  • IEC 61851-21-2
    IEC 61000-4
  • Other
  • AIS 138 Part 2
  • EV Communication
  • ISO 15118 - CCS2 Only
    DIN 70121 - CCS2 Only
    GBT Standard - GBT Only

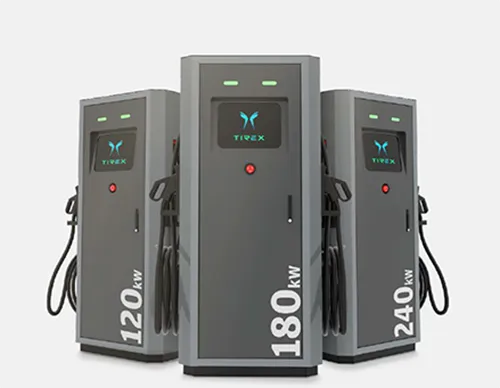

Electrical

  • Maximum Output Power
  • 180kW
  • Input Supply
  • 3 Phase 5 wire AC Supply
  • Input Supply Rating
  • 3 Phase 380-480 V
  • Nominal Input Power (Approx.)
  • 193 kVA
  • Input Frequency
  • 50/60 Hz
  • Output Voltage Per Gun
  • 150 - 1000 Vdc
    (150-500 and 300-1000 seamless rise)
  • Output Max Current Per Gun
  • 250A
  • Metering
  • Grid Responsive Metering
  • Efficiency
  • >95% Peak
  • Power Factor
  • >0.98 at Nominal Load
  • Maximum Power Density
  • 0.154 W/cm³
  • Number of Power Modules
  • 6
  • Individual Capacity of Power Modules
  • 30kW
  • Short Circuit Current Rating
  • 50kA
  • Safety Systems
  • Under Voltage, Over Voltage,
    Over Current, Single Phasing, Earth Leakage,
    Over Temperature, Surge Protection

Interface

  • Gun Configurations
  • Dual CCS2 or Dual GBT
  • Charging Cable Length
  • 5M Standard (8M Optional)
  • CMS Protocole
  • OCPP 1.6J Upgradable to OCPP 2.0
  • User Interface
  • 10.4 Inch full colored touch screen
  • Network Connection
  • 3G/4G Sim Card, Ethernet
  • RFID
  • MIFARE ISO 14443 Type A

MIFARE ISO 14443 Type A

  • Cooling of Cabinet
  • Forced Air Cooled
  • Cooling of Power Modules
  • Forced Air Cooled
  • Humidity (Non Condensing)
  • 5%-95%
  • Max Operating Altitud
  • 2000 M (derating above 2000M)
  • Operating Temperature Range
  • Negative 20 to Degree Celsius
    to 70 Degree Celsius (Derating beyond
    55 Degree Celsius)
  • Storage Temperature Range
  • Negative 40 Degree Celsius to
    70 Degree Celsius

Mechanical

  • IP Rating
  • IP 55
  • IK Rating
  • IK 10
  • Dimensions
    (Foot Print in W x D x H in mm)
  • 750 x 760 x 1754
  • Dimensions
    (Maximum Points in W x D x H in mm)
  • 1100 x 810 x 1754
  • Mounting
  • Ground

Standards Compliance

  • Electrical Safety
  • IEC 61851-1

    IEC 61851-23
  • Electromagnetic Compatibility
  • IEC 61851-21-2
    IEC 61000-4
  • Other
  • AIS 138 Part 2
  • EV Communication
  • ISO 15118 - CCS2 Only
    DIN 70121 - CCS2 Only
    GBT Standard - GBT Only

Electrical

  • Maximum Output Power
  • 240kW
  • Input Supply
  • 3 Phase 5 wire AC Supply
  • Input Supply Rating
  • 3 Phase 380-480 V
  • Nominal Input Power (Approx.)
  • 257 kVA
  • Input Frequency
  • 50/60 Hz
  • Output Voltage Per Gun
  • 150 - 1000 Vdc
    (150-500 and 300-1000 seamless rise)
  • Output Max Current Per Gun
  • 250A
  • Metering
  • Grid Responsive Metering
  • Efficiency
  • >95% Peak
  • Power Factor
  • >0.98 at Nominal Load
  • Maximum Power Density
  • 0.154 W/cm³
  • Number of Power Modules
  • 8
  • Individual Capacity of Power Modules
  • 30kW
  • Short Circuit Current Rating
  • 36kA
  • Safety Systems
  • Under Voltage, Over Voltage,
    Over Current, Single Phasing, Earth Leakage,
    Over Temperature, Surge Protection

Interface

  • Gun Configurations
  • Dual CCS2 or Dual GBT
  • Charging Cable Length
  • 5M Standard (8M Optional)
  • CMS Protocole
  • OCPP 1.6J Upgradable to OCPP 2.0
  • User Interface
  • 10.4 Inch full colored touch screen
  • Network Connection
  • 3G/4G Sim Card, Ethernet
  • RFID
  • MIFARE ISO 14443 Type A

MIFARE ISO 14443 Type A

  • Cooling of Cabinet
  • Forced Air Cooled
  • Cooling of Power Modules
  • Forced Air Cooled
  • Humidity (Non Condensing)
  • 5%-95%
  • Max Operating Altitud
  • 2000 M (derating above 2000M)
  • Operating Temperature Range
  • Negative 20 to Degree Celsius
    to 70 Degree Celsius (Derating beyond
    55 Degree Celsius)
  • Storage Temperature Range
  • Negative 40 Degree Celsius to
    70 Degree Celsius

Mechanical

  • IP Rating
  • IP 55
  • IK Rating
  • IK 10
  • Dimensions
    (Foot Print in W x D x H in mm)
  • 750 x 760 x 1754
  • Dimensions
    (Maximum Points in W x D x H in mm)
  • 1100 x 810 x 1754
  • Mounting
  • Ground

Standards Compliance

  • Electrical Safety
  • IEC 61851-1

    IEC 61851-23
  • Electromagnetic Compatibility
  • IEC 61851-21-2
    IEC 61000-4
  • Other
  • AIS 138 Part 2
  • EV Communication
  • ISO 15118 - CCS2 Only
    DIN 70121 - CCS2 Only
    GBT Standard - GBT Only
